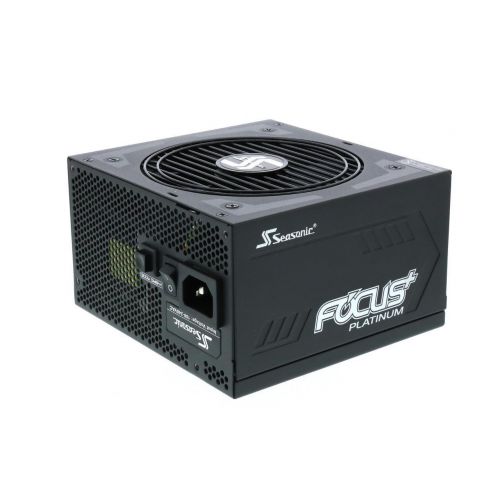

| | Power Supplies > | | | | | | Seasonic Focus PX-750 80PLUS Platinum 750W Fully Modular Power Supply (SSR-750PX) | | Item Code: | | PSSS0047 | | Part Number: | | SSR-750PX | | Barcode: | | 4711173874645 | | | | | More Info |
| | |  | |  | In Stock
Quantity Remaining: 1 | |
|  | |
| |
| | | Overview | | 80 PLUS® PLATINUM
The FOCUS PLUS Platinum Series achieves 80 PLUS® Platinum certification with its 92 % efficiency at 50 % system load.
CABLE-FREE CONNECTION DESIGN
Seasonic’s engineers have implemented a new design feature, where instead of cables; the back panel and the PCB (Printed Circuit Board) are connected by a copper plate. This breakthrough solution not only lowers the chance of production errors during manual insertion but it also improves output power quality.
HYBRID SILENT FAN CONTROL
The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.
FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan. | |
| | Specifications | | | 80PLUS | | Platinum | | Cybenetics Efficiency Level | | ETA-A (View report) | | Cybenetics Noise Level | | LAMBDA-A- (View report) | | Form Factor | | Intel ATX 12 V | | Dimensions | | 140 mm (L) x 150 mm (W) x 86 mm (H) | | Fan Size | | 120 mm | | Fan Control | | S3FC - Fanless until 30 % load | | Fan Bearing | | Fluid Dynamic Bearing | | Life Expectancy | | 50,000 hours at 40 °C, 15 % - 65 % RH | | Modularity | | Fully Modular | | Cable type | | Flat black cables | | Operating Temperature | | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) | | MTBF 25 °C, excl. fan | | 100,000 hours | | AC Input | | Full Range | | Protection | | OPP, OVP, UVP, OCP, OTP, SCP | | Voltage | | 100 V - 240 V | | Current | | 11 - 5.5 A | | | | |
| |
|
|
|
