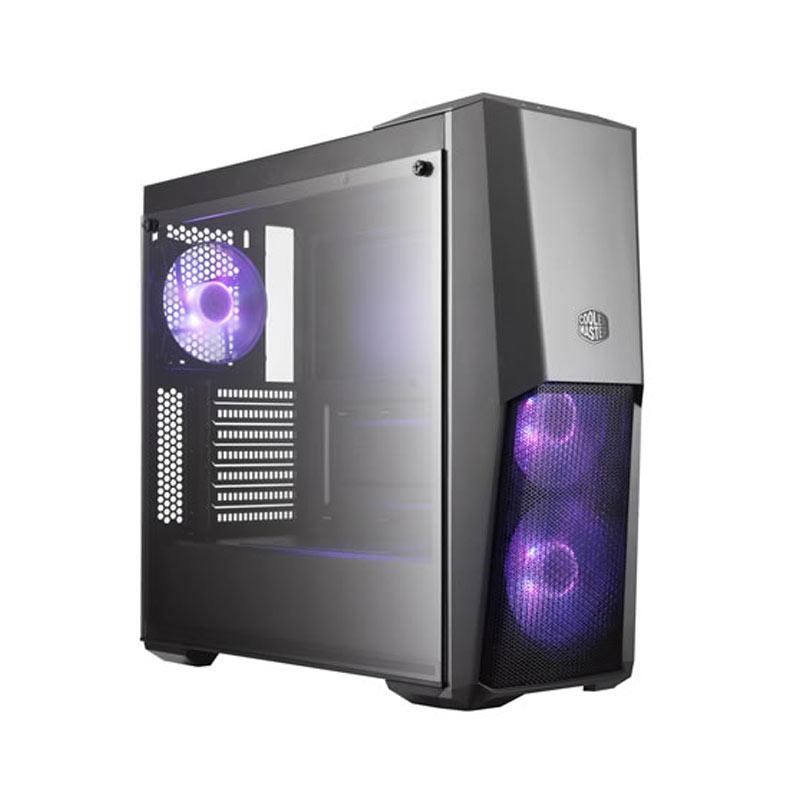

|Cooler Master MasterBox MB500 Mid Tower Case Tempered Glass (MCB-B500D-KGNN-S00)|
|Item Code:|| ||CACM0106|
|Part Number:|| ||MCB-B500D-KGNN-S00|
| || ||More Info|
Quantity Remaining: 1
|TEMPERED GLASS SIDE PANEL|
Show off your build in style through the 4mm thick edge to edge tempered glass side panel.
EXCELLENT THERMAL PERFORMANCE
Optimized airflow due to the semi-meshed front panel and ventilation holes on top of the case.
FAN AND RADIATOR SUPPORT
The front supports up to three 120mm- or two 140mm fans and up to a 360mm radiator, with a maximum thickness of 50mm without fans. The Rear supports a 120mm fan or radiator, and the top up two 120mm fans. It comes with two pre-installed 120mm RGB fans in the front and a single 120mm RGB fan in the rear. All to ensure you don't have to compromise on performance.
MAIN COMPONENTS CLEARANCE
The MB500 case supports CPU-Coolers up to a height of 160mm, Graphic Cards up to a length of 400mm, and Power Supplies up to a length of 180mm.
|Available Color || ||Black|
|Materials || ||Steel, Plastic, Tempered Glass|
|Dimensions (LxWxH) || ||494 x 211 x 475mm|
|Motherboard Support || ||ATX, Micro-ATX, Mini-ITX|
|Expansion Slots || ||7|
|Drive Bays || ||5.25"- NA, 3.5" HDD x2, 2.5 SSD x2|
|I/O Port || ||USB 3.0 x 2, Audio In / Out|
|Pre-installed Fan(s) || ||Front: 120mm x 2 RGB LED fan, Rear: 120mm x 1 RGB LED fan|
|Fan Support || ||Front: 120mm x 3 / 140mm x 2, Top: 120mm x2, Rear: 120mm x1|
|Radiator Support || ||Front: 120 / 140 / 240 / 280 / 360mm radiator, Rear: 120mm x 1|
|Clearances || ||CPU Cooler: 160mm, PSU: 180mm, GPU: 400mm|
|Cable Routing || ||Behind MB Tray: 15 - 23mm / 0.59" - 0.90"|
|Dust Filters || ||Front, Bottom|
|Power Supply Support || ||Bottom mount, ATX|
| || || |
